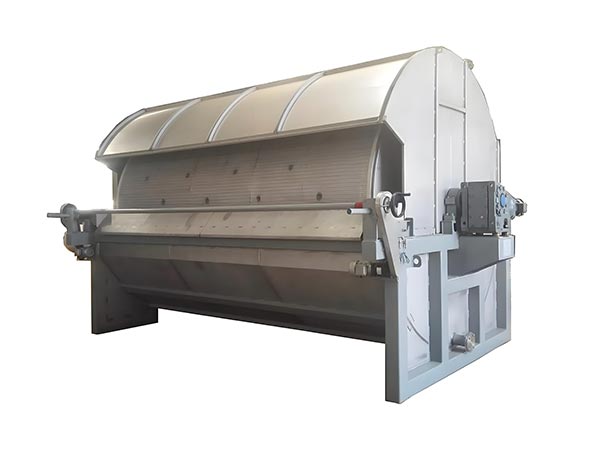

China Tshuab Npog Drum Vacuum Kev Tsim-

Tshuab npog drum vacuum yog ib qho cuab yeej kev lag luam uas ua tiag kev sib cais khoom nrig thiab kua tsis nres sivg vacuum suction and a rotating drum. Its core component is a slowly rotating, hollow drum covered with filter cloth on its surface. Through the suction generated by internal vacuum pumping, the liquid in the suspension is drawn into the drum, while solid particles are retained to form a filter cake—enabling continuous filtration, dehydration, and discharge. It is widely used in industries such as chemical engineering, mining, and environmental protection.

Cov Lus Qhia

Hom	Chaw npog (㎡)	Drum loj me (m)	Taw qhia ces (°)	Drum ceev (r/min)	Lois tsev (kW)	Hnyav (kg)	Loj me (mm)
G2/1.0	2	1	120	0.13~2	0.37	1520	1600x1800x1500
G5/1.6	5	1.6	120	0.13~2	0.55	2500	2200x2600x2100
G10/2.0	10	2	140	0.13~0.79	1.5	4160	3380x3000x2170
G15/2.5	15	2.5	140	0.13~0.79	1.5	5300	3860x3100x2750
G20/2.5	20	2.5	140	0.13~0.79	1.5	6320	4460x310x2750

Txoj Kev Ua Hauj Lwm ntawm Tshuab Npog Drum Vacuum

Txoj kev ua hauj lwm ntawm tshuab npog drum vacuum nyob rau hauv kev sib xyaw ua hauj lwm ntawm drum tig thiab vacuum system sab hauv kom ua tiag kev npog tsis nresnuous solid-liquid separation.

Drum feem ib feem nyob rau hauv cov kua sib xyaw uas yuav kho. Vacuum system sab hauv tsimnegative pressure, which draws the liquid into the drum for discharge. Simultaneously, solid particles are adsorbed onto the filter medium on the drum surface, forming a filter cake.

Thaum drum tig tsis nres, cov khoom nrig hla ib cheeb tsam ntxuav, ib cheeb tsam qhuav, thiabfinally reaches a discharge zone, where the discharge process is completed. The filter medium then re-submerges (into the suspension) to start the next cycle, enabling the continuous operation of the entire solid-liquid separation process.

Working Principle

Cov Yam Ntxim ntawm Tshuab Npog Drum Vacuum

1.Kev Ua Hauj Lwm Zoo Thiab Automatically

Los ntawm kev tig drum, cov tshuab npog ua tiag plaub txheej txheem tseem ceeb—npog, ntxuav, qhuav, thiab tso tawmarge—enabling continuous production. Parameters such as rotation speed and vacuum degree can be adjusted automatically, eliminating the need for intermittent manual operation and reducing labor costs.

2.Kev Sib Cais Ruaj Khov

Kev ua hauj lwm tsis nres ntawm vacuum siab tsawg tsis txhawb kev sib cais ceev xwb tab sis kujables deep dehydration, resulting in a low moisture content of the filter cake. The separation efficiency is less affected by fluctuations in material concentration, ensuring stable and controllable performance.

3.Kev Hloov Pauv Khoom Dav

Tom qab hloov nqaub npog thiab kho cov parameters xws li tig ceev thiab vacuum qib, cov filter can be adapted to various materials, including granular, viscous, and crystalline ones. It is applicable across fields such as chemical engineering, food processing, and mining.

4.Kev Tsim Compact Thiab Kho Yooj Yim

Kev sib xyaw ntau hauj lwm rau hauv ib lub tshuab, cov tshuab npog siv chaw tsawg. Nws cov khoom tseem ceebents are easy to assemble and disassemble. Daily maintenance mainly involves cleaning the filter cloth and replacing wearing parts, making the operation simple.

Video Tshuab Npog Drum Vacuum
