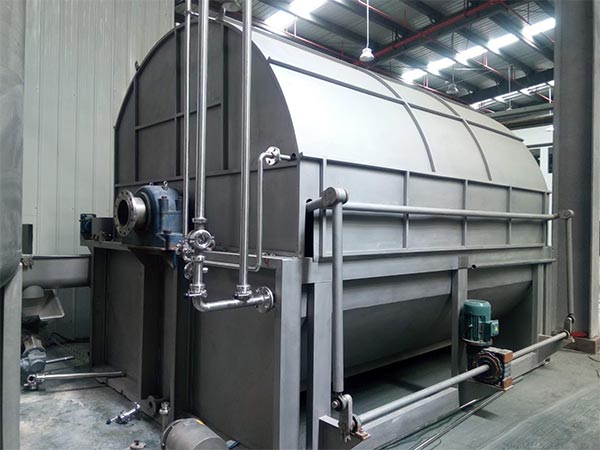

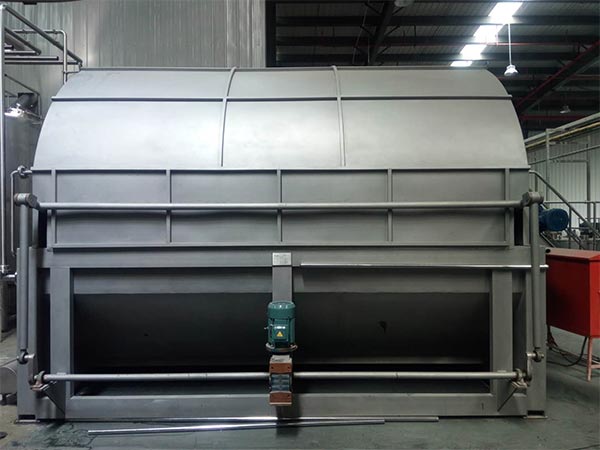

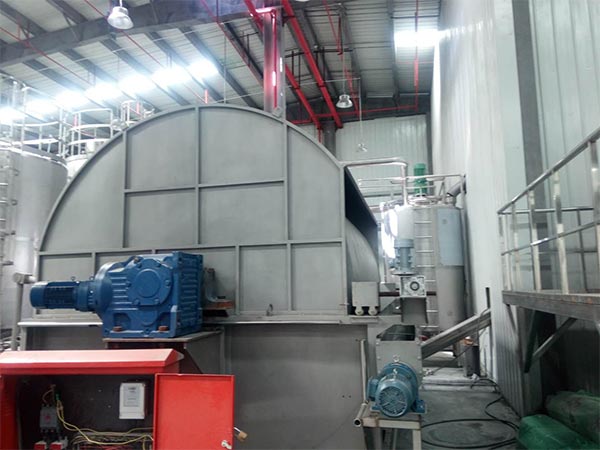

Precoat Discharge Rotary Vacuum Drum Filter

Lub Precoat discharge rotary vacuum drum filter yog thawj hom high-efficiency automated cais khoom nrig thiab dej cuab yeej. Nws cov tswvyaw ua haujlwm yog ua ib tug porous precoat rau saum npoo ntawm lub drum raws li cov filtration medium, tsav cov khoom filtrate los ntawm vacuum pressjoni negativ, thiab ua tiav cov kev ua haujlwm tsis tu ncua los ntawm kev sib koom mechanical discharge. Cov cuab yeej no muaj cov filtration precision siab, ruaj ua haujlwm thiab yooj yim kho, thiab tuaj yeem txo cov kev tsim khoom fais fab siv thiab cov kho cov npi thaum txhim kho cov kev tsim khoom zoo tag nrho.

Cov Yam Ntxwv ntawm Precoat Discharge Rotary Vacuum Drum Filter

1.Structural Design:Lub drum ua los ntawm ib tug integral welding lossis casting cov txuj ci, nrog cov filter qhov sib npaug faib rau saum npoo nrog ib tug anti-corrosive lining. Lub frame ua los ntawm steel structure, muaj cov ruaj zoo thiab haum rau cov hnyav haujlwm hauv cov chaw ua haujlwm.

2. Precoat System:Nws muab teeb tsa nrog ib tug precoat sib xyaw tank, metering pump thiab distributor, uas tuaj yeem tswj cov precoat tuab raug thiab kom cov filtrate ua haujlwm ib yam.

3. Vacuum System:Nws siv scraper lossis hlua discharge hom, nrog cov scraper lub kauj ruam adjustable, pub tag nrho peeling ntawm cov filter cake yam tsis muaj residue thiab zoo zam cov khoom poob.

4. Pov Tawm Cuab Yeej:Nws siv scraper lossis hlua discharge hom, nrog cov scraper lub kauj ruam adjustable, ua tiav cov tag nrho stripping ntawm cov filter cake tsis muaj residue tso tseg, zoo tiv thaiv cov khoom pov tseg.

5. Kev Ntxuav Haujlwm:Ib tug spray kev ntxuav system muab los ua countercurrent kev ntxuav ntawm cov filter cake, uas txo cov dej content ntawm cov filter cake thiab zoo txhim kho cov khoom rov qab tau.

6. Kev Nyab Xeeb Tiv Thaiv:Nws muab teeb tsa nrog overload tiv thaiv, vacuum qib abnormal alarm, automatic kua theem tswj thiab lwm cov cuab yeej, ua raws li cov kev lag luam kev nyab xeeb standards.

7. Cov Khoom Xaiv Tau:Cov khoom-contacting cov khoom xws li lub drum thiab plhoob tuaj yeem ua los ntawm 304 stainless steel, 316L stainless steel, titanium alloy, fluorine-lined khoom, thiab lwm yam, kom haum rau cov sib txawv corrosive media.

Txoj Kev Ua Haujlwm ntawm Precoat Discharge Rotary Vacuum Drum Filter

Cov filter siv ib tug precoat raws li cov high-precision filtration medium. Cais khoom nrig thiab dej tsav los ntawm vacuum pressjoni negativ, thiab ib tug closed-loop txuj ci ntawm regeneration-filtration-ntxuav-pov tawm ua tiav los ntawm cov kev lis lis ntawm lub drum, pub cov kho zoo ntawm cov fine-grained thiab nyuaj-rau-filtrate cov khoom.

Cov kauj ruam tshwj xeeb yog raws li no:

1. Precoat Formation:Cov precoat khoom xws li diatomite thiab perlite sib xyaw nrog dej kom ua ib tug suspension, uas raug adsorbed rau saum npoo ntawm lub drum nyob rau hauv pressjoni negativ kom tsim ib tug porous filtration sab nrog ib tug tuab ntawm 0.5–5 mm. Qhov sab no tiv thaiv lub drum thiab txhim kho cov filtration precision.

2. Pressjoni Negativ Filtration:Lub drum lis me ntsis thiab immersed mus rau hauv cov khoom. Vacuum pressjoni negativ tsav cov filtrate hla cov precoat thiab cov filter qhov ntawm lub drum, thaum cov khoom nrig particles raug ntes kom ua ib tug filter cake.

3. Filter Cake Kev Ntxuav:Tom qab lub drum lis tawm ntawm cov khoom thaj chaw, cov spray cuab yeej spray cov ntxuav kua. Nyob rau hauv cov hauj lwm ntawm pressjoni negativ, cov tshuav valuable components hauv cov filter cake raug ntxuav tawm thiab cov dej content txo qis.

4. Mechanical Pov Tawm:Ib tug scraper lossis hlua-hom cuab yeej siv los scrape tawm ob qho cov filter cake thiab cov invalidated saum npoo precoat sab, kom tsis muaj residue nyob rau hauv lub drum saum npoo.

5. Circulation Regeneration:Cov pov tawm drum rov qab adsorbs tshiab precoat suspension kom ua ib tug tshiab filtration sab, pib lwm lub filtration sij hawm thiab pub cov kev ua haujlwm tsis tu ncua.

Cov Technical Parameters：

Cov Technical Specifications	Specification Ntau
Filtration area	0.5-50 ㎡
drum diameter	0.8-4.5 m
Drum length	1.0-6.0 m
Drum speed	0.1-5 r/min (adjustable yam kiag li)
Vacuum qib	-0.04~-0.09 MPa
Ua haujlwm kub	≤ 120 ℃ (conventional); ≤ 200 ℃ (customized rau kub siab)
Kev kho peev xwm	5-500 m ³/h (raws li cov khoom characteristics)
Filter cake dej content	≤ 20% (raws li cov khoom characteristics)
Pre coating tuab	0.5-5 mm (adjustable)
Fais fab xav tau	380V/50Hz (peb-phase)
Cov Khoom Kev Xaiv	304/316L stainless steel, titanium alloy, roj hmab lining, fluorine lining

Cov Chaw Siv

Chemical Kev Lag Luam

Haum rau cov filtrate ntawm cov organic/inorganic compounds, purification ntawm cov fine chemical intermediates, thiab cov kho ntawm cov acid quav thiab alkali quav.

Mining Thiab Metallurgy

Siv dav hauv cov dewatering thiab filtrate ntawm cov mineral flotation tailings, cov high-efficiency cais ntawm cov metal oxides, thiab cov kev kho siab ntawm cov rare earth cov ntsiab lus.

Food Industry

Haum rau cov fruit juice clarification, beer filtrate, cov roj noj refining, starch extract purification, thiab cov dairy cov khoom degreasing thiab clarification.

Ib Puag Ncig Engineering

Nws ua haujlwm zoo heev hauv cov kev kho siab ntawm cov industrial wastewater, thiab kuj haum rau cov sludge dewatering raws li cov gypsum rov qab siv thiab cov gypsum—ib tug by-product ntawm cov flue gas desulfurization.

Tshuaj Thiab Biochemical Engineering

Pab cov high-purity filtrate ntawm cov pharmaceutical intermediates, cov fermentation broths clarification, thiab cov purification ntawm cov bioactive cov ntsiab lus xws li cov antibiotics.

Tshiab Cov Khoom Kev Lag Luam

Haum rau cov precision filtrate ntawm cov lithium battery cov khoom thiab cov refinement ntawm cov raw cov khoom xws li cov ceramic powder.

Kev Ua Haujlwm Zoo Sib piv ntawm Precoat Discharge Rotary Vacuum Drum Filter thiab Conventional Vacuum Drum Filter：

kev ua haujlwm metrics	Pre coated discharge vacuum drum filter	Ordinary vacuum drum filter tshuab
Cov filtrate zoo	Clarity siab kawg nkaus, ze rau 'zero turbidity'	General clarity
Filter cloth lub neej siv	Kev txuas loj heev (vim li pre coating tiv thaiv)	Luv dua (ncaj qha txog cov particles)
Filter ruaj	Zoo heev (Pre coating tsis tu ncua hloov tshiab)	Ib txwm muaj (filter cloth yooj yim khawv)
Cov khoom siv siv dav	Dua dav (tshwj xeeb rau cov fine cov khoom)	Tsawg dua (feem ntau haum rau cov conventional cov khoom)
Operation cycle	Ntev (txo cov nres sij hawm thiab cov fabric hloov zaus)	Luv (xav tau raws li kev ntxuav lossis hloov cov filter cloth)
Cuab Yeej Complexity	Siab dua (ntxiv cov pre coating system)	Lower
operating cost	Me ntsis siab dua (xav tau cov filter aid siv)	Tsawg (tsis muaj ntxiv filter aid siv)

Thaum Twg Siv Ib Tug Precoat Discharge Rotary Vacuum Drum Filter?

Thaum cov khoom muaj cov fine particles (1–50 μm), cov qub filter cloth ua haujlwm yuam kev kom ntsej tau cov filtration precision, thiab ib tug high-clarity filtrate xav tau.

Thaum cov khoom muaj viscosity siab (>500 mPa·s), coj mus rau cov khawv zaus thiab cov kho peev xwm tsawg hauv cov standard filtration cuab yeej.

Thaum cov kev ua haujlwm tsis tu ncua xav tau thaum kev tsim khoom, nrog cov automation siab thiab cov tes cuam tshuam tsawg.

Thaum cov khoom yog corrosive lossis kub siab, xav tau cov khoom tshwj xeeb configurations kom haum.

Thaum muaj cov kev xav tau nruj rau cov filter cake dej content thiab cov khoom rov qab tau.

Thaum siv hauv cov kev tsim khoom loj-scale xwm txheej uas xav tau cov kev ua haujlwm ruaj thiab tswj cov kho cov npi.
