China Starch Vacuum Drum Filter Chaw Tsim Khoom-

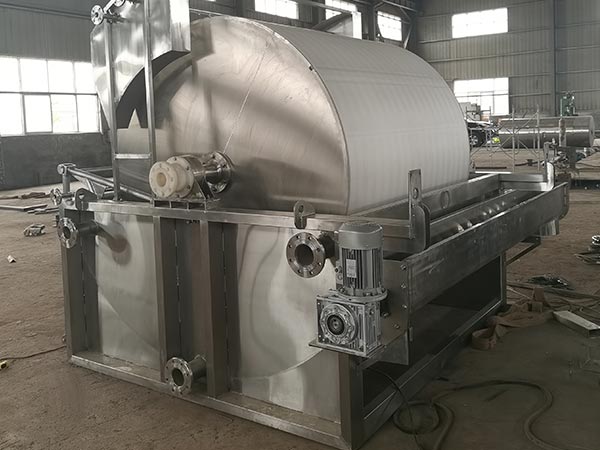

Starch Vacuum Drum Filter

Lub starch vacuum drum filter yog ib lub kev ntxuav tsis tu ncua cuab yeej tsim tshwj xeeb rau kev cais khoom nrig thiab dej ntawm cov starch slurry. Nws siv vacuum suction los ua lub zog tsav los rho cov dej hauv cov starch suspension, ua ib tug filter cake nrog qhov qhuav. Nws siv dav hauv cov kev tsim khoom ntawm ntau hom starch, xws li corn starch, potato starch, cassava starch thiab wheat starch. Cov cuab yeej no muaj kev ua haujlwm loj, automation siab, ua haujlwm ruaj thiab tsawg dej content hauv cov filter cakes, ua kom nws yog ib tug tseem ceeb dewatering cuab yeej hauv cov kev lag luam starch.

Txoj Kev Ua Haujlwm

Muab Khoom: Cov starch slurry sib npaug muab tso rau saum npoo ntawm cov filter cloth ntawm lub drum.

Filtration Thaj Chaw: Thaum lub drum lis me ntsis, nws sab hauv txuas nrog vacuum system los ntawm rotary valve. Nyob rau hauv vacuum suction, cov kua hla cov filter cloth thiab nkag rau hauv lub drum, tom qab pov tawm los ntawm cov raj xau. Cov khoom nrig nyob rau saum npoo ntawm cov filter cloth kom ua ib tug filter cake.

Kev Ntxuav: Nyob rau hauv qee cov txuj ci, cov dej huv tuaj yeem spray saum npoo ntawm cov filter cake kom ntxuav tshem cov impurities lossis cov soluble components.

Qhuav Thaj Chaw: Txuas ntxiv dewatering nyob rau hauv vacuum kom txo cov dej content ntawm cov filter cake.

Pov Tawm: Thaum lub drum lis mus rau qhov pov tawm qhov chaw, cov filter cake yog scraped tawm lossis tshem tawm los ntawm compressed air, thiab poob rau hauv cov khoom sau nyob qab no.

Filter Cloth Ntxuav: Tom qab pov tawm, cov filter cloth raug ntxuav los ntawm ib tug automatic kev ntxuav cuab yeej kom npaj rau lwm lub sijhawm.

Cov Chaw Siv

Corn Starch Kev Ua Khoom: Dewatering cov refined starch mis.

Potato Starch Kev Ua Khoom: Dewatering cov starch mis tom qab hydrocyclone ntxuav.

Cassava Starch Kev Ua Khoom: Dewatering starch ua ntej yav tom kawg qhuav txuj ci.

Wheat Starch Kev Ua Khoom: Kuj haum rau rov qab starch los ntawm starch mis.

Nws lub luag haujlwm tseem ceeb yog dewatering starch mis nrog dej content txog 50-60% mus rau cov moist starch filter cakes nrog dej content txog 35-40%.

Cov Zoo ntawm Starch Vacuum Drum Filter

Piv nrog lwm cov dewatering cuab yeej, cov vacuum drum filter muaj cov zoo tseem ceeb hauv starch kev tsim khoom.

Kev ua haujlwm cia li tsis tu ncua

Cov kev tsim khoom txuj ci ua haujlwm tsis nres nrog kev coj khoom tsawg, thiab yooj yim sib koom nrog cov kev tsim khoom automation kab.

Kev ua haujlwm loj

Nws haum heev rau loj-scale, industrialized starch kev tsim khoom.

Kev ntxuav haujlwm sib koom tau

Nws tuaj yeem ntxuav cov filter cake thaum dewatering txuj ci kom txhim kho starch purity.

Ua haujlwm ruaj thiab ntseeg siab

Nws muaj ib tug robust structure, yooj yim kho, thiab tsawg failure rate.

Ib yam qhuav ntawm filter cake

Vim li vacuum dewatering tag nrho, cov dej content ntawm cov filter cake tau yog ruaj, uas pab txuag fais fab thiab ruaj rau cov tom qab qhuav txuj ci.

Txuag fais fab dua

Piv nrog cov pressed tag nrho cuab yeej, nws cov fais fab siv feem ntau tsawg dua.

Cov Lus Qhia Basic

Project	Parameter
Drum diameter	1.5-3.0m
Drum length	1.0-2.5m
Filtration area	5-20㎡
Drum speed	0.3-3.0rpm
Vacuum qib	-0.04~-0.08MPa
Filter cake dej content	18%-25%
Kev ua haujlwm zog	5-30 tons qhuav starch ib hnub
Drive power	2.2-7.5KW
Material	Cov chaw txuas ua los ntawm 304/316L stainless steel, uas tiv thaiv corrosion
Control method	PLC automatic tswj, tuaj yeem sib koom rau DCS system

Starch Vacuum Drum Filter

Lub starch vacuum drum filter yog ib tug tseem ceeb tsis tu ncua dewatering cuab yeej hauv starch processing, thiab nws siv dav hauv cov kev tsim khoom ntawm corn, potato, cassava thiab lwm cov starch. Tag nrho lub tshuab ua los ntawm stainless steel, muaj corrosion tiv thaiv thiab yooj yim kho. Nws tuaj yeem sib koom nrog PLC automatic tswj kom haum rau ntau hom txuj ci xav tau. Nrog nws cov kev ua haujlwm siab, txuag fais fab thiab ntseeg siab, lub vacuum drum filter tau dhau los ua ib tug tsis tu ncua tseem ceeb cuab yeej hauv cov kev lag luam starch.
