Product Definition

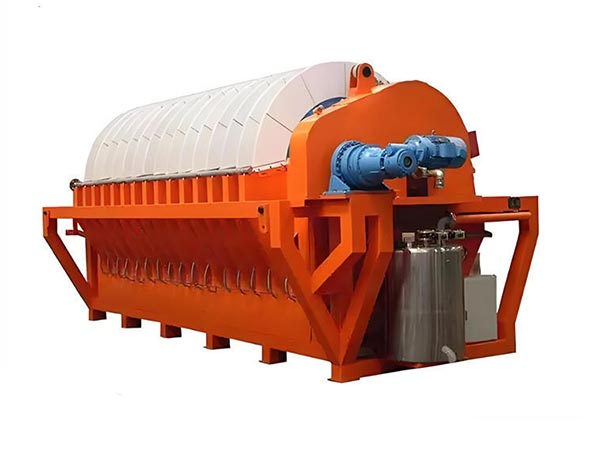

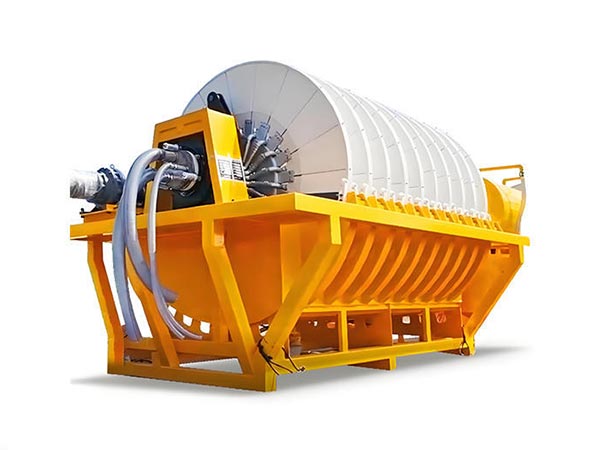

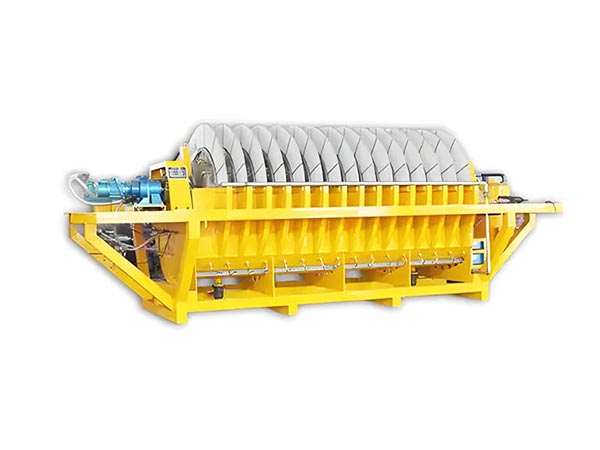

The Tshuab Npog Sab Ceramic yog ib qho tshuab sib cais khoom nrig thiab kua zoo kawg, siv daim npog ceramic alumina ua tus nqa tseem ceeb, sib xyaw vacuum adsorption, kev sib cais capillary, thiab kev tswj intelligent. Los ntawm kev sib koom ua hauj lwm ntawm cov qhov micro-pores micro-level hauv daim npog ceramic thiab vacuum system, nws ua tiag kev sib cais ncaj ncees ntawm cov khoom nrig los ntawm cov kua. Siv dav dav hauv kev qhuav khoom thiab huv si nyob kho zeb, tshuaj, kev tiv thaiv ib puag nyuam, thiab lwm kev lag luam, nws yog tshiab tshuab siv zog tsawg uas npaj tsim los hloov cov kev npog ntaub npog qub.

Core Advantages

Tshuab Npog Sab Ceramic yog ib qho tshuab sib cais khoom nrig thiab kua zoo kawg, nrog cov zoo tseem ceeb xyaum

Kev Qhuav Zoo Siab

Ua tau vacuum siab -0.09 txog -0.098 MPa, ua rau cov khoom nrig qhuav thiab txhim kho txo cov nqi thauj tom kawg.

Kua Npog Huv Si

Kua npog solids tsawg dua 50 ppm, pab cov kua rov siv dua thiab ua kom muaj kev tswj dej kaw.

Kev Siv Zog Zoo

Cawm tshij 90% zog piv nraug nrog cov tshuab npog qub, kev siv fais fab tsuas yog 1/10 ntawm cov tshuab ib txog, txhim kho txo cov nqi ua hauj lwm

Automation Intelligent

Siv PLC + computer kev tswj sib xyaw rau kev ua hauj lwm automatically tag nrho nyob rau muab khoom, npog, ntxuav, thiab tso tawm, txo kev siv neeg.

Kev Tsim Nruab Nrab

Chaw tsawg thiab yooj yim rau teeb tsa. Cov khoom tseem ceeb muaj kev tsim tsis xav kho, thaum stainless steel dav tsim ntseeg tau lub neej siv ntev.

Kev Haum Ntau Hom

Ua cov khoom ultra-fine los ntawm -200 txog 450 mesh, haum rau ntau yam kev ua hauj lwm nyob cov metals tsis muaj hlau, tshuaj, kev tiv thaiv ib puag nyuam, thiab lwm kev lag luam.

Txoj Kev Ua Hauj Lwm:

Cov tshuab ua kev sib cais khoom nrig thiab kua los ntawm kev ua hauj lwm tsis nres hauv plaub theem: "vacuum adsorption - qhuav - tso tawm - ntxuav." Txoj hauj lwm tseem ceeb yog li no:

Theem Adsorption: Lub rotor sab uas muaj daim npog ceramic raug muab npog hauv dav kua nrig. Nyob rau hauv vacuum thiab capillary, cov kua liav dhau lub qhov micro ntawm daim npog los ua kua npog, thaum cov khoom nrig los ua cov khoom nrig saum daim.

Theem Qhuav: Tom qab cov daim npog sawv saum ntaj kua nrig, vacuum siab txuas ntxiv txo cov khoom nrig qhuav.

Theem Tso Tawm: Thaum lub rotor los txog qhov tsis muaj vacuum, cov scrapers automatically tshem cov khoom nrig, uas tom qab raug tso tawm los ntawm conveyor belt.

Theem Ntxuav: Reverse flushing ntxuav cov qhov thaiv ntawm daim npog. Tom qab ua hauj lwm ntev, ultrasonic + tshuaj ntxuav pib kom rov zoo daim npog.

Cov Lus Qhia Khoom

Loj me ntawm sab npog (mm)		2100											3100
Chaw npog (m³)		5	10	15	20	25	30	35	40	45	50	60	48	60	72	84	96	108	120
Tus naj sab npog (daim)		1	2	3	4	5	6	7	8	9	10	12	4	5	6	7	8	9	10
Tus naj npog fans ib daim (daim)		18（20）											18（20）
Lois spindle (kw)		2.2			3		4			5.5			5.5			7.5		11
Lois sib xyaw (kw)		3			4		5.5			7.5			7.5			11		15
Txoj kev tso tawm		Cua rov qab											Cua rov qab
Loj me tag nrho	Ntev (mm)	2145	2535	2925	3315	3705	4096	4485	4875	5265	5655	6435	4235	4735	5235	5735	6235	6735	7235
	Dav (mm)	2480											4280
	Siab (mm)	2690											3740
Kev ua peev xwm (t/h · m³)		0.7-1.2											0.7-1.2

Kev Siv Ntau Cheeb Tsam:

Cheeb Tsam Kho Zeb: Siv rau kev qhuav concentrates thiab tailings ntawm gold, silver, copper, iron, zinc, thiab lwm cov minerals kom txhawb khoom huv si thiab txo cov nqi thauj;

Cheeb Tsam Tshuaj Thiab Kev Tiv Thaiv ib Puag Nyuam: Ua cov khoom tsaus ntuj kev lag luam xws li electrolytic slag, leaching residue, thiab furnace slag, thiab cov khoom ib puag nyuam xws li sewage sludge thiab waste acid kom txo kev contaminated thiab rov cov khoom;

Cheeb Tsam Khoom Tshiab: Ua kev nquo siab (solids mus txog 65%-70%) hauv kev tsim ultrafine powders xws li spherical silica, nano-calcium carbonate, thiab graphite, txo cov zog qhuav tom kawg;

Lwm Cheeb Tsam Tshwj Xeeb: Ua raws li kev npog ncaj ncees siab nyob kho mob, khoom noj, semiconductors, thiab lwm kev lag luam, ntseeg tau khoom huv si thiab ua raws li kev tsim khoom standards.

Mining Processing Sector

Cheeb Tsam Tshuaj Thiab Kev Tiv Thaiv ib Puag Nyuam

New Materials Sector

Other Specialized Fields

Txoj Kev Ua Hauj Lwm Pev:

Kev Kuji Pom Teb Me Nyuam: Tsim kev daws teb kev cai raws li cov parameters tseem ceeb xws li loj me khoom, concentration, thiab kev ua khoom;

Kev Cai Tshuab: Sib raug daim npog khoom siv, chaw npog, thiab automation systems rau kev xav tau tshwj xeeb, siv cov khoom ruaj xws li corundum ceramics rau cov khoom tseem ceeb;

Kev Teeb Tsa Thiab Kev Sim: Cov pab pawg professional muab kev qhia thiab teeb tsa, ua kev sim sib xyaw ntawm vacuum systems, kev ntxuav systems, thiab automation programs kom ntseeg tau kev ua hauj lwm raws li cai;

Kev Qhia & Kev Pab Ua Hauj Lwm: Muab kev qhia ua hauj lwm, kev kuji pom sij hawm, thiab kev daws teb ceev ceev. Khij cov khoom qub xws li ultrasonic ntxuav khoom thiab lwm cov khoom noj khoom hnav;

Kev Pab Txuas Ntxiv: Tsim cov ntaub ntawv tshuab ua hauj lwm thiab muab cov lus qhia rau kev txhim kho technology thiab txoj kev ua hauj lwm.

Vim Li Cas Xaiv Yinuo Machinery?

1.Kev Paub Txoj Hauj Lwm

Ntau xyoo dav dav rau kev sib cais khoom nrig thiab kua, nrog kev npog technology tseem ceeb sib piv rau cov standards thoob ntiaj teb, haum rau kev ua hauj lwm nyuaj nyob ntau kev lag luam.

2.Kev Cai Muaj Peev Xwm

Kho daim npog qhov loj me thiab kev ntxuav raws li cov khoom, ntseeg tau kev ua hauj lwm zoo kawg.

3.Cov Nqi Zoo

Tshuab siv zog tsawg 15% dua kev lag luam ib txog, daim npog lub neej ntev 20%, thiab cov nqi ua hauj lwm txo 30%.

4.Kev Pab Ntseeg Tau

24/7 kev kho ceev ceev kom txo cov poob thaum nres hauj lwm

5.Cov Ntawv Pov Hwm

ISO 9001 quality system certified, ua raws li kev tsim khoom huv si standards.
