Tshuab Npog Sab Tig yog ib qho tshuab sib cais khoom nrig thiab kua uas siv dav dav. Nws qhov zoo tshwm sim hauv kev sib xyaw ntawm txoj hauj lwm sib cais ntawm vacuum adsorption nrog kev ua hauj lwm tsis nres ntawm lub cev sab, ua tiag kom siv zog tsawg thiab khoom tawm ntau hauv kev sib cais khoom nrig thiab kua.

Tshuab Npog Sab Tig:

Tus Tshuab Npog Sab Tig yog tsim raws li cov hauv paus "kev sib cais zoo + kev ua ruaj khov." Nws cov khoom tseem ceeb thiab lawv hauj lwm yog li no:

Lub Nqej Tseem Ceeb: Muaj lub dav npog voj voog (rau muab kua nrig, khoom siv xaiv raws li kev tiv thaiv corrosion: 304/316L stainless steel, fiberglass reinforced plastic, lossis rubber-lined), lub cev sab tig tseem ceeb, thiab ib lub gear motor.

Kev Sib Dhos Sab Npog: Lub tshuab tus cej muag, muaj 8-24 daim sab npog sib cais (tej num raws li kev ua peev xwm). Txhua daim sab muaj chaw sau kua zoo li rooj (honeycomb/lattice) sab hauv, thiab ntaub npog tim sab nraud.

Kev Vacuum Thiab Kev Rov Rhu: Muaj tshuab vacuum, cov pj ncauj vacuum, lub dav cua compressed, thiab cov pj ncauj rov rhu. Cov pj ncauj txuas rau lub cev sab ntawm rotating joints kom ntse, ua vacuum adsorption thiab rov rhu cov nrig tawm.

Kev Ntxuav: Muaj lub dav kua ntxuav, tshuab fwb, cov pj ncauj fwb, thiab cov nozzles. Nozzles hloov kauj ruam thiab kua ceev tau (0.5–5 m³/h, sib kis nrog kev khaubncaws kua nrig) kom kua ntxuav phu cov khoom nrig zoo.

Kev Tso Tawm Thiab Thauj: Muaj cov scrappers stainless steel/wear-resistant alloy (0.1–0.3 mm deb los ntawm ntaub npog), kev xaiv vibration devices, thiab cov khoom thauj tom kawg. Scrappers muab cov khoom nrig tso tawm, uas raug thauj ceev kom tsis sib tshoob.

Kev Tswj: Ua hauj lwm los ntawm PLC, saib xyuas lub sij hawm tiag tiag ntawm ceev, vacuum, qhov siab ntawm kua, thiab kua ntxuav ceev. Txhawb touchscreen parameter configuration thiab kev foob (xws li ntaub npog thaiv, tshuab vacuum ua tsis zoo). Cov khoom zoo kawg nkaus nrog DCS systems rau automation tag nrho.

Kev xaiv khoom siv tseem ceeb "chaw npog" ua qhov tseem ceeb, feem ntau nyob 5 txog 100 m², nrog kev custom dhau 200 m². Kev ua kua nrig muaj peev xwm 1 txog 50 m³/h, raws li cov khoom nrig solids thiab loj me.

Tshuab Npog Sab Tig

Cov Zoo Tseem Ceeb:

Piv nraug nrog cov khoom sib cais khoom nrig thiab kua xub dua xws li plate-and-frame filter presses, chamber filter presses, thiab centrifugal filters, Tshuab Npog Sab Tig muaj cov zoo hauv qab no:

1. Kev Ua Tsis Nres Nrog Kev Zoo Siab: Siv kev tsim sab tig, tshem tawm kev ua ntsuas "plate loading-filtering-resting" uas plate-and-frame machines xav tau, ua kom ua hauj lwm 24/7. Nws ua tau ntau khoom rau ib chaw npog, haum rau kev siv loj xws li kev kho kua quis thiab kho minerals.

2. Automation Siab: PLC systems ua tag nrho automation, txo cov nqi neeg. Ntaub npog hloov yooj yim, ua kom cov nqi kho tsawg dua piv nrog cov khoom xub dua.

3. Khoom Nrig Qhuav Zoo: "pre-dewatering + deep dewatering + reverse-blow" txheej txheem ua kom cov khoom nrig qhuav 10%-20% tsawg dua centrifuges thiab 5%-15% tsawg dua cov vacuum filters. Rau cov kua quis nrig, txhua 10% qhuav cawm 15%-20% kev siv zog qhuav.

4. Kev Haum Dav: Ua cov suspensions los ntawm 0.1 txog 1000 μm. Kev sib cais ruaj khov rau cov kua tsawg viscosity (power plant desulfurization gypsum), siab viscosity (starch slurry), thiab cov khoom corrosion (electroplating wastewater) los ntawm kev hloov parameters, nrog kev thaiv ntaub npog tsawg.

5. Ruaj Khov, Nyab Xeeb, Thiab Zoo Rau ib Puag Nyuam: Kev tig ceev<5 rpm nrog kev tsoom tsawg thiab suab <85 dB. Tsis muaj cov khoom tig ceev ntseeg tau kev nyab xeeb. Cov dav npog kaw/semi-kaw tiv thaiv kua quis volatile thiab tshwm, ua kom cov khoom poisonous kaw tau.

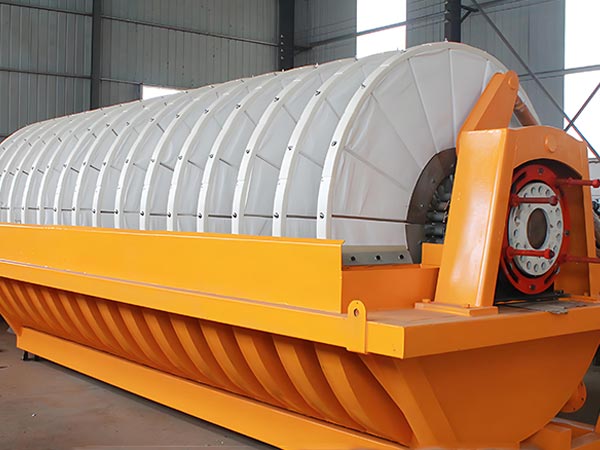

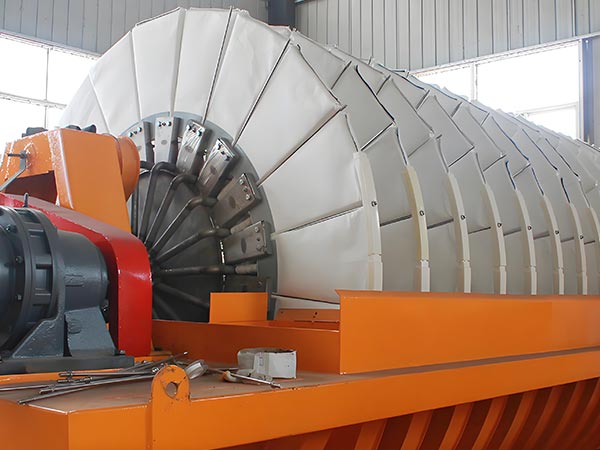

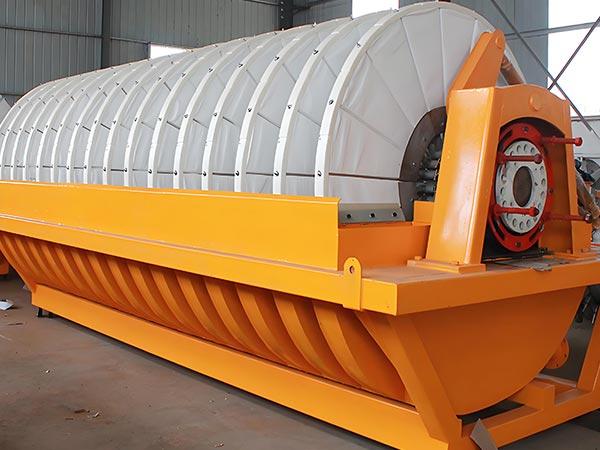

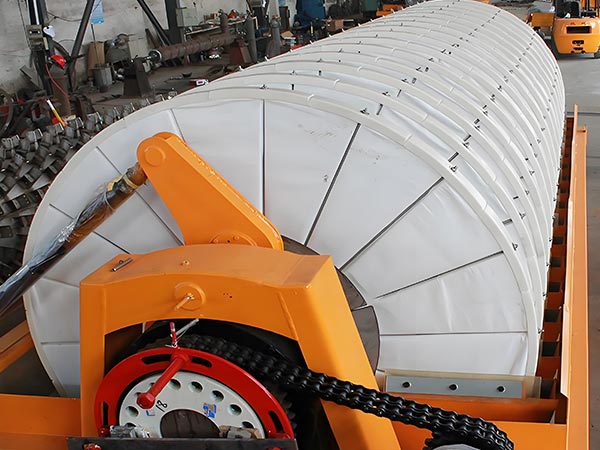

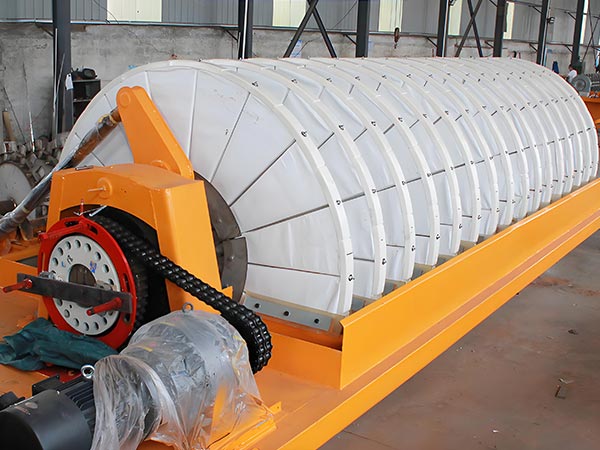

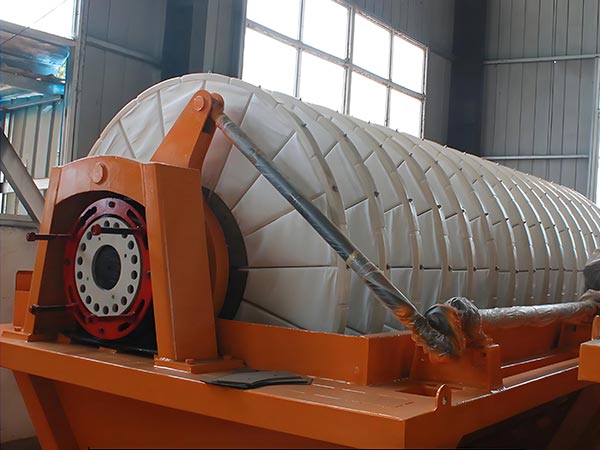

Duab Khoom

Cov Lus Qhia Ua Hauj Lwm ntawm Tshuab Npog Sab Vacuum

Npe parameter	Kev sib txawv parameter	Lus qhia
Chaw npog	0.5-200 ㎡	10、15、20、25、30、35、40、45、50、60、72、84、96、108、120㎡, lwm yam
Loj me ntawm sab npog	120-3100mm	Xws li daim loj 2400 millimeters, daim me 1200 millimeters, lossis 2100 millimeters, 3100 millimeters, lwm yam
Tus naj sab npog	2-12 daim	Raws li chaw npog, xws li thaum chaw npog yog 10 square meters, tus naj sab npog yog 2, thaum 15 square meters, yog 3, thiab li no
Tus naj npog fans ib daim	20 tus	Kev teeb tsa ib txog muaj peev xwm tswj kom zoo kev npog, ua kom khoom nrig tu siab sib xws
Kev npog ncaj ncees	2-100 microns	Npog nrog kev ncaj ncees txawv raws li cov khoom npog siv, xws li cellular cotton, ntaub npog, ntawv npog, lwm yam
Siab npog	0.1-1.0 megapascal	Hloov tau raws li hom khoom thiab kev xav tau sib txawv
Kev vacuum	Tsis tsawg dua 91.2KPa	Txog 684 millimeters mercury ntseeg tau kev npog zoo
Kev ua peev xwm	0.6-1.2 tons qhuav ore ib teev ib square meter	Kev ua peev xwm tshwj xeeb muaj feem nrog cov khoom, chaw npog, lwm yam
Kev qhuav ntawm khoom nrig	Cov khoom feem ntau tsis dhau 26%	Kev qhuav ntawm khoom nrig txawv ntawm cov khoom, thiab feem ntau tswj tau ntawm 12% thiab 18% thaum ua phosphate concentrate
Kua nrig concentration	10%-65%	Kev concentration zoo kawg ntawm metals mineral kua yog 35% -65%, thiab cov coal lossis cov khoom hnyab kua zoo kawg yog 20% -40%
Loj me ntawm kua nrig	-100 mesh to -400 mesh	Haum rau kev npog kua nrig nyob rau hauv loj me no
Lois fais fab	2.2-15 kW	Muaj lois spindle thiab lois sib xyaw, xws li thaum chaw npog yog 10 square meters, lois spindle yog 2.2 kW thiab lois sib xyaw yog 3 kW; thaum chaw npog yog 120 square meters, lois spindle yog 11 kW thiab lois sib xyaw yog 15 kW
Khoom siv tshuab	Stainless steel, carbon steel, carbon steel liner, high molecular weight polyethylene, lwm yam	Xaiv cov khoom sib txawv raws li cov khoom corrosion
Kev tswj	PLC Control	Cov parameters xws li sij hawm npog, siab, thiab kev ntxuav cov khoom npog hloov tau raws li kev xav tau

Kev Siv Ntau Cheeb Tsam:

Siv nws kev ua zoo siab thiab kev haum dav, Tshuab Npog Sab Vacuum tau siv nyob ntau cheeb tsam xws li kev tiv thaiv ib puag nyuam, kev lag luam tshuaj, khoom noj, thiab kho zeb. Kev siv tshwj xeeb xyaum:

1. Kev Lag Luam Tiv Thaiv ib Puag Nyuam:

Kev kho kua quis municipal: Ua cov activated sludge thiab surplus sludge, ua kom cov khoom nrig qhuav<60% tom kawg kom yooj yim rau landfill lossis hlawv;

Kev kho kua quis kev lag luam: Kev kho cov chromium sludge thiab saline sludge los ntawm tshuaj, electroplating, thiab dyeing wastewater kom txo cov khoom tsaus ntuj;

Flue gas desulfurization: Kev qhuav cov desulfurization gypsum kua los ntawm lub tshuab hluav taws xob thiab steel mills los tsim gypsum nrog kev qhuav<15%, haum rau kev tsim khoom siv tsev.

2. Kev Lag Luam Tshuaj:

Fine chemicals: Kev sib cais suspensions hauv synthetic resin thiab pigment kev tsim khoom kom ntseeg tau khoom huv si;

Kev tsim Fertilizer: Kev kho phosphogypsum kua thiab salt sludge los ntawm ammonium phosphate thiab potassium chloride kev tsim kom rov tau cov by-products (xws li phosphogypsum rau sulfuric acid);

Organic Chemicals: Kev sib cais ethanol, acetone, thiab lwm cov solvent-solid sib xyaw kom rov tau solvent.

3. Kev Lag Luam Khoom Noj

Kev Ua Starch: Kev npog starch kua los tau cov starch taw 35%–45% kev qhuav, npaj rau kev qhuav tom kawg;

Kev Lag Luam Zaub Qhuav: Kev kho sugar beet thiab sugarcane filtration mud kom rov tau zaub qhuav; mud hloov tau ua zaub tsiaj;

Kev Ua Mis: Kev npog whey protein suspensions thiab whey los ntawm cheese kev tsim kom txhawb khoom rov qab.

4. Kev Lag Luam Kho Zeb Thiab Metallurgy

Kev Kho Minerals: Kev qhuav copper, iron, thiab gold ore concentrates los tsim 10%-20% kev qhuav concentrate powder rau kev thauj zoo thiab smelting;

Kev Kho Minerals Tsis Muaj Metals: Kev kho limestone thiab kaolin kua kom tshem cov khoom tsis zoo thiab txhawb huv si;

Kev Kho Cov Khoom Tsaus Ntuj: Kev qhuav steel slag thiab red mud kom txo loj me thaum rov tau cov metals zoo xws li iron.

5. Kev Lag Luam Zog Tshiab

Lithium Battery Khoom Siv: Kev sib cais lithium iron phosphate thiab ternary kua los ntawm NMP solvent kom ntseeg tau loj me thiab huv si;

Photovoltaic Khoom Siv: Kev npog quartz sand kua kom tshem cov khoom tsis zoo thiab txhawb photovoltaic glass huv si;

Kev Cia Zog Khoom Siv: Kev tshem cov khoom tsis zoo los ntawm vanadium flow battery electrolytes kom ntseeg tau electrolyte huv si thiab battery zoo.
